VE3KH VE3KDH Current

VE3KH FN03cg - Current Status

2026 Summer Plan for Home Station

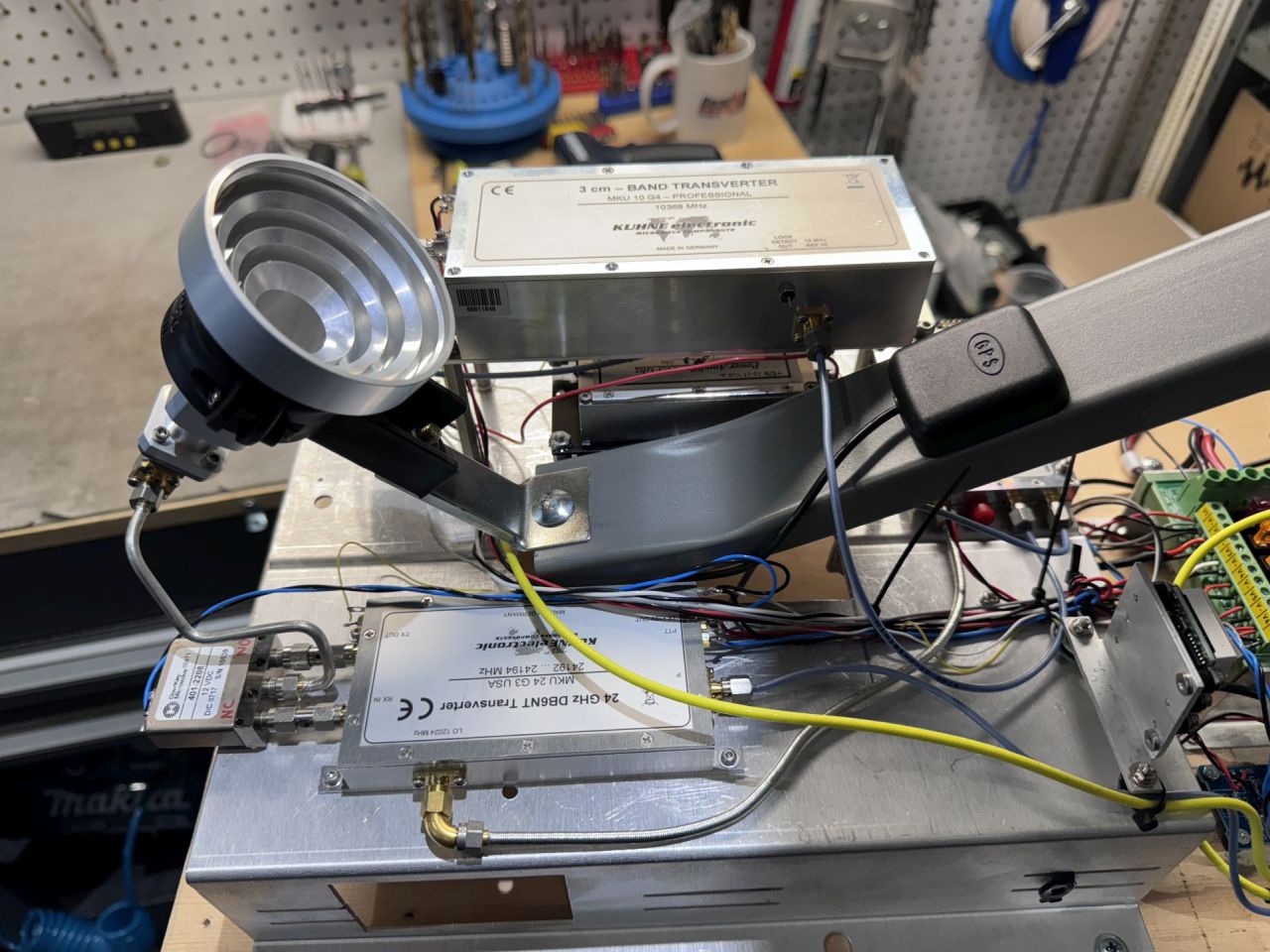

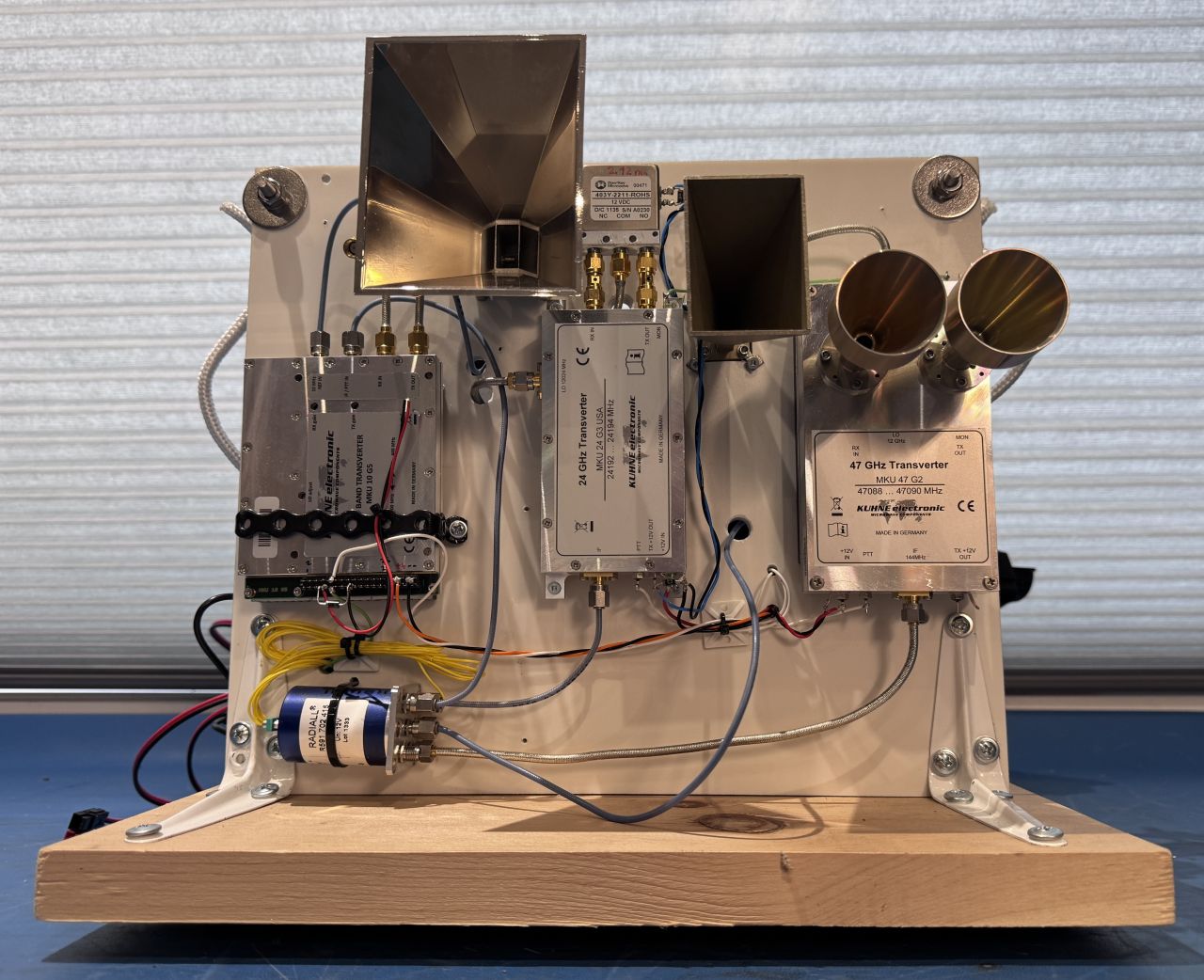

50 MHz Flex-6600M to ACOM PA to Directive Systems DSEJX5-50 5el Yagi 12' Boom 10.1dBi 144 222 432 902 1296 MHz Flex-6600M to Q5 Signal 5BVUX HP XVTR to I0JXX130-1300 MHz Log Periodic 146 223 446 MHz Tri-Band FM System Rohn 25 Tower 40' ... relocated with tower mounted enclosure (12.8VDC PS & RF Unit ~100' Ethernet Cable Control Head in the Shack Comet CX-333 Tri-band Vertical 146MHz 6.5dBi … 5/8 wave x 2 223MHz 7.8dBi … 5/8 wave x 3 446MHz 9.0dBi … 5/8 wave x 5 BTECH Baofeng Tech UV-50X3 Tri Band FM Radio Yaesu FTM-350 clone 146 MHz 50W 223 MHz 5W 446 MHz 50W Major Service is required / planned The Elevation Slew Drive failed ... cause TBD. 10 24 47 78 GHz must all be removed from the tower to allow service / replacement. The 5.8 GHz and 2.3 / 3.4 GHz systems must be removed / serviced. Elevation slew drive will be replaced. A new 10 GHz System Kuhne XVTR, 40W PA, LNA, Waveguide Switch, 2' RadioWaves Dish system will be installed A new 24 GHz System Kuhne XVTR, 10W PA, LNA, Waveguide Switch, 2' RadioWaves Dish system will be installed 2304 3400 5760 MHz ... these systems may be replaced by a new SG Labs tri-band grid dish system on the Sprinter 2304 Kuhne XVTR & PA & LNA to 5' Boom Yagi 3400 Kuhne XVTR & PA & LNA to 5' Boom Loop Yagi 5760 Kuhne XVTR, 40W PA, LNA, 2' RadioWaves Dish

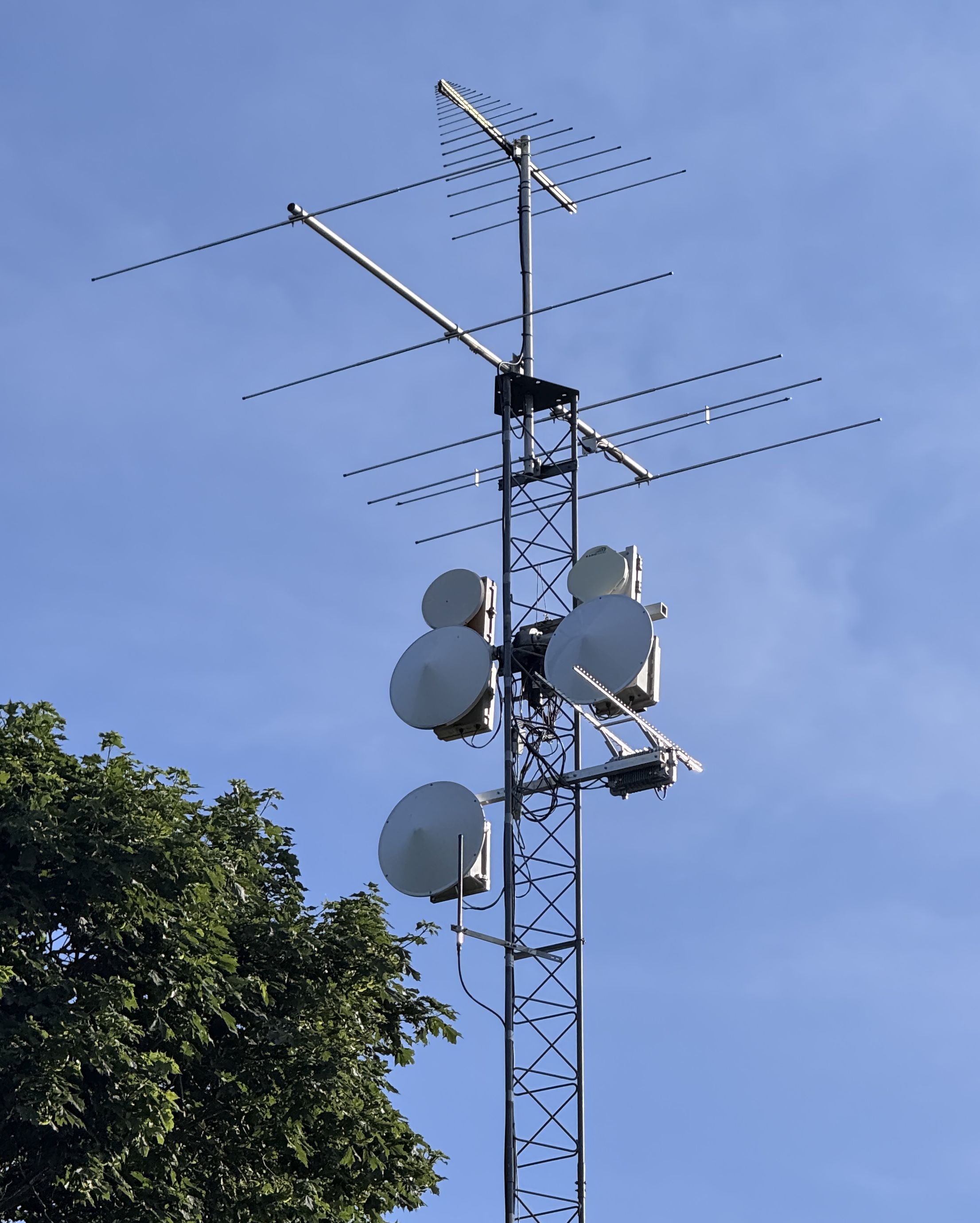

Rohn 45 Rotating Tower M2 OR-2800 (Elevation for 10 24 47 78)
